Industrial Equipment Vibration Monitoring System

EIOT185-3A

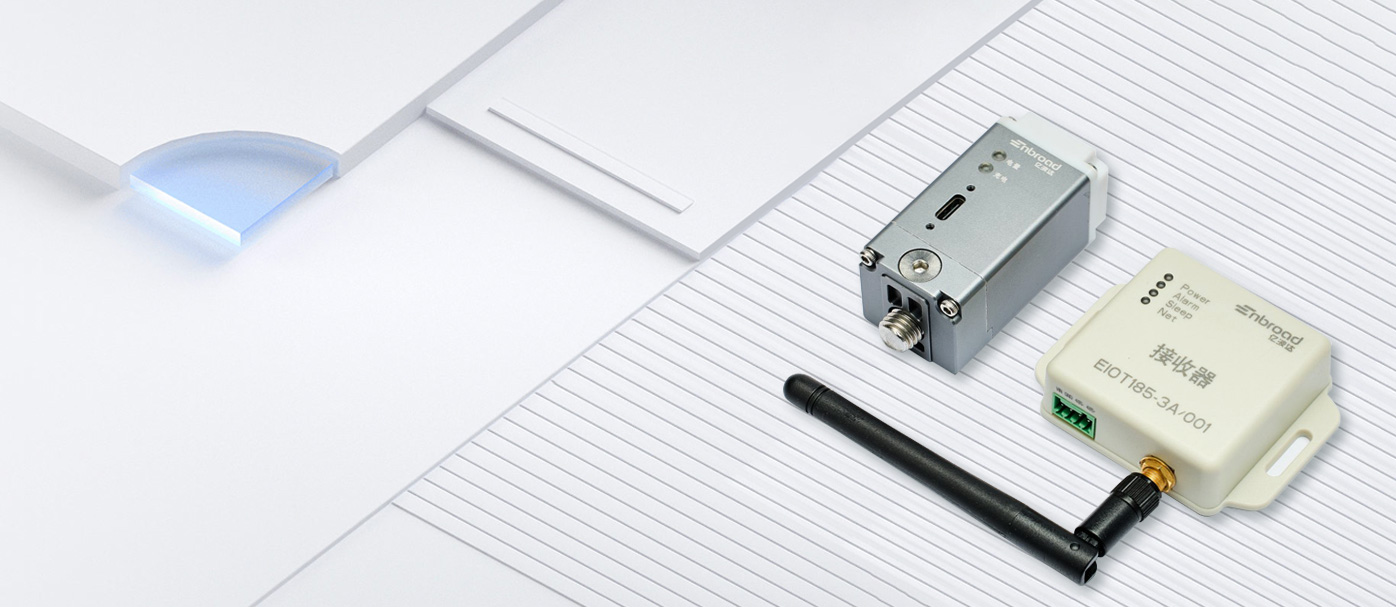

EIOT185-3A It is a Lora transmission, rechargeable large capacity battery power supply, with end computing function and digital output of the 3-axis intelligent vibration temperature Angle composite data acquisition terminal. Including a variety of equipment coordination work of a monitoring system, each system includes: a number of vibration monitoring terminals, a repeater, a receiver, a set of computer computer software four major parts. The main monitoring index of the product system is vibration, and can measure the ambient temperature of the vibration monitoring terminal. The shock monitoring terminal shell is made of metal and has both wireless and wired communication modes.
performance parameter Advantages and Characteristics application area

performance parameter


Acquisition terminal

Vibration measurement range (g)Frequency response rangesensitivity

Wireless communication

Wired communicationspeedantenna

±10

1HZ-1000HZ51200LSB/gLoar2.4GHZ(2KM)

RS485

9600-115200bpsBuilt-in onboard


Repeater/receiver

Communication modeTransmission distancespeedantennaCommunication modespeed

LoRa433MHZ

2KMwithin9600-115200bps433MGlue stick antenna

RS485

9600-115200bps




Advantages and Characteristics

  • Large battery power supply, continuous working time is not less than 6 months
    Large battery power supply, continuous working time is not less than 6 months Large battery power supply, continuous working time is not less than 6 months
  • Battery power and external power supply dual power supply mode
    Battery power and external power supply dual power supply mode Battery power and external power supply dual power supply mode
  • Outdoor visual communication distance within 2km (open and unobstructed environment)
    Outdoor visual communication distance within 2km (open and unobstructed environment) Outdoor visual communication distance within 2km (open and unobstructed environment)
  • Wireless communication, wired communication dual communication mode
    Wireless communication, wired communication dual communication mode Wireless communication, wired communication dual communication mode
  • A repeater can manage a maximum of seven nodes
    A repeater can manage a maximum of seven nodes A repeater can manage a maximum of seven nodes
  • 24 hours unattended. The collection period and reporting period can be set
    24 hours unattended. The collection period and reporting period can be set 24 hours unattended. The collection period and reporting period can be set

application area

×
