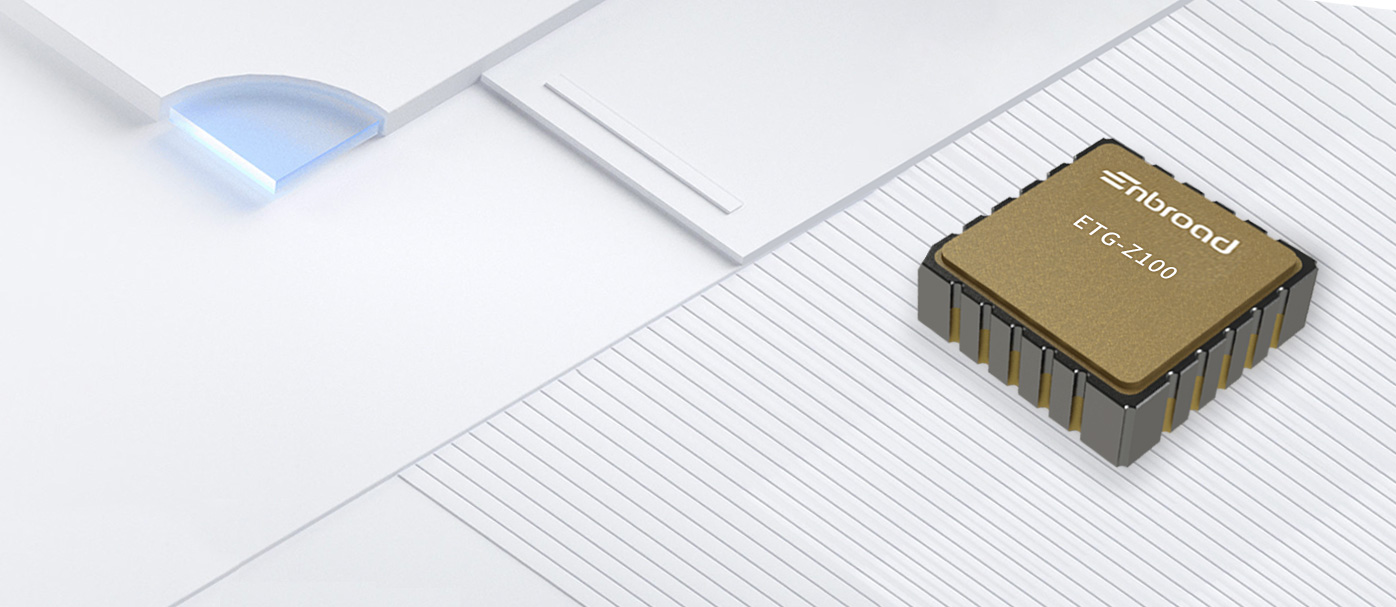

Z-axis Gyroscope

ETG-Z100

The ETG-Z100 series high-performance Z-axis angular velocity sensor (gyroscope) is a high-precision gyroscope developed based on advanced silicon micro mechanical manufacturing technology and single-chip integrated packaging technology. It supports ± 300 °/s full-scale output performance and zero bias instability below 0.5 °/hr. The output angular rate data is in 24 bit binary complement format and can be accessed through SPI digital compatible interface. The ETG-Z100 series can achieve precise angular velocity measurement in high vibration environments, suitable for applications such as inertial navigation, attitude measurement, and platform stability control.
性能参数 优势特点 应用领域

性能参数


ModelRange(dps)-3dB带宽(Hz)Zero Bias Instability(°/h)Angle Random WalkOperation Temperature（℃）Supply Voltage（V）Package Size（mm）
ETG-Z103±30020~3000.5~2.5＜0.15-40~+1253~5.5

LCC封装-48引脚:

11×11×2.9

ETG-Z105±50020~3000.5~2.5＜0.05-40~+1253~5.5

LCC封装-48引脚:

11×11×2.9

ETG-Z110±100020~3000.5~3.0＜0.15-40~+1253~5.5

LCC封装-48引脚:

11×11×2.9

ETG-Z120±200020~3000.5~3.0＜0.15-40~+1253~5.5

LCC封装-48引脚:

11×11×2.9


ModelScale Factor(LSB/dps)Scale Factor Temperature CoefficientLinearity ErrorNoise Density(dps/Hz1/2)G-value Sensitivity(dps/g)ADC Precision(bit)Start TimeStorage temperature（℃）
ETG-Z10327962500ppm±0.2%0.001~0.0026＜0.00524500-50~+500
ETG-Z10516777500ppm±0.2%0.001~0.0026＜0.00524500-50~+500
ETG-Z1108388500ppm±0.25%0.001~0.0026＜0.00924500-50~+500
ETG-Z1204194500ppm±0.25%0.001~0.0026＜0.00924500-50~+500



优势特点

应用领域

×
