X/Y Dual Axis Gyroscope

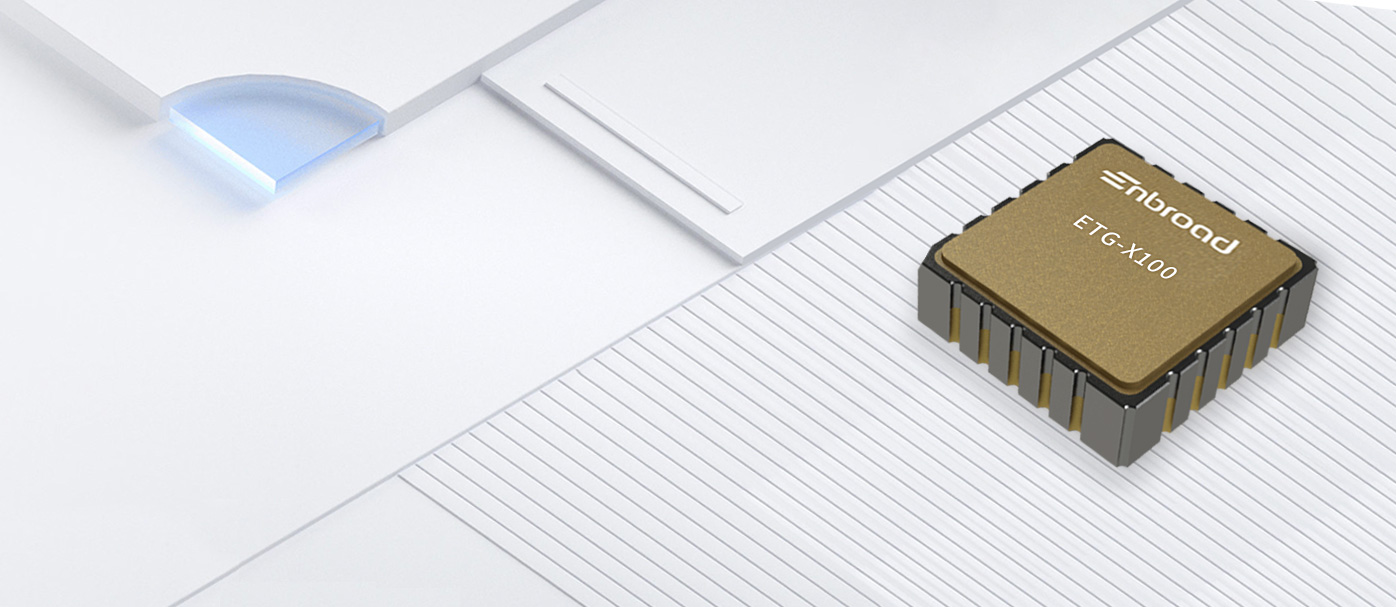

ETG-X100

The ETG-X100 series high-performance X-axis angular velocity sensor (gyroscope) is a high-precision gyroscope developed based on advanced silicon micro mechanical manufacturing technology and single-chip integrated packaging technology. It supports ± 300dps (optional range of 500/1000/2000) full-scale output performance, with zero bias instability below 1 °/hr. The output angular rate data is in 24 bit binary complement format and can be accessed through SPI digital compatible interface. The ETG-X100 series can achieve precise angular velocity measurement in high vibration environments, suitable for applications such as inertial navigation, attitude measurement, and platform stability control.
performance parameter Advantages and Characteristics application area

performance parameter


ModelRange(dps)-3dB带宽(Hz)

Zero Bias Instability

(°/h)

Angle Random WalkOperation Temperature（℃）Supply VoltagePackage Size
ETG-X103±30020~300＜1＜0.15-40~+125 ℃3~5.5

LCC封装-48引脚:

11×11×2.9

ETG-X105±50020~300＜1＜0.15-40~+125 ℃3~5.5

LCC封装-48引脚:

11×11×2.9

ETG-X110±100020~300＜1＜0.15-40~+125 ℃3~5.5

LCC封装-48引脚:

11×11×2.9

ETG-X120±200020~300＜1＜0.15-40~+125 ℃3~5.5

LCC封装-48引脚:

11×11×2.9


Model

Scale Factor

(LSB/dps)

Scale Factor Temperature CoefficientLinearity Error

Noise Density

(dps/Hz1/2)

G-value Sensitivity

(dps/g)

ADC

Precision

Start TimeStorage temperature
ETG-X10327962500ppm±0.2%0.001~0.0026＜0.00524

500

-50~+150
ETG-X10516777500ppm±0.2%0.001~0.0026＜0.00524500-50~+150
ETG-X1108388500ppm±0.25%0.001~0.0026＜0.00924500-50~+150
ETG-X1204194500ppm±0.25%0.001~0.0026＜0.00924500-50~+150


Advantages and Characteristics

  • Sensitive X-axis
    Sensitive X-axis Sensitive X-axis
  • Stable offset and sensitivity throughout the temperature zone
    Stable offset and sensitivity throughout the temperature zone Stable offset and sensitivity throughout the temperature zone
  • Compatible SPI
    Compatible SPI Compatible SPI
  • Excellent vibration resistance
    Excellent vibration resistance Excellent vibration resistance

application area

×
