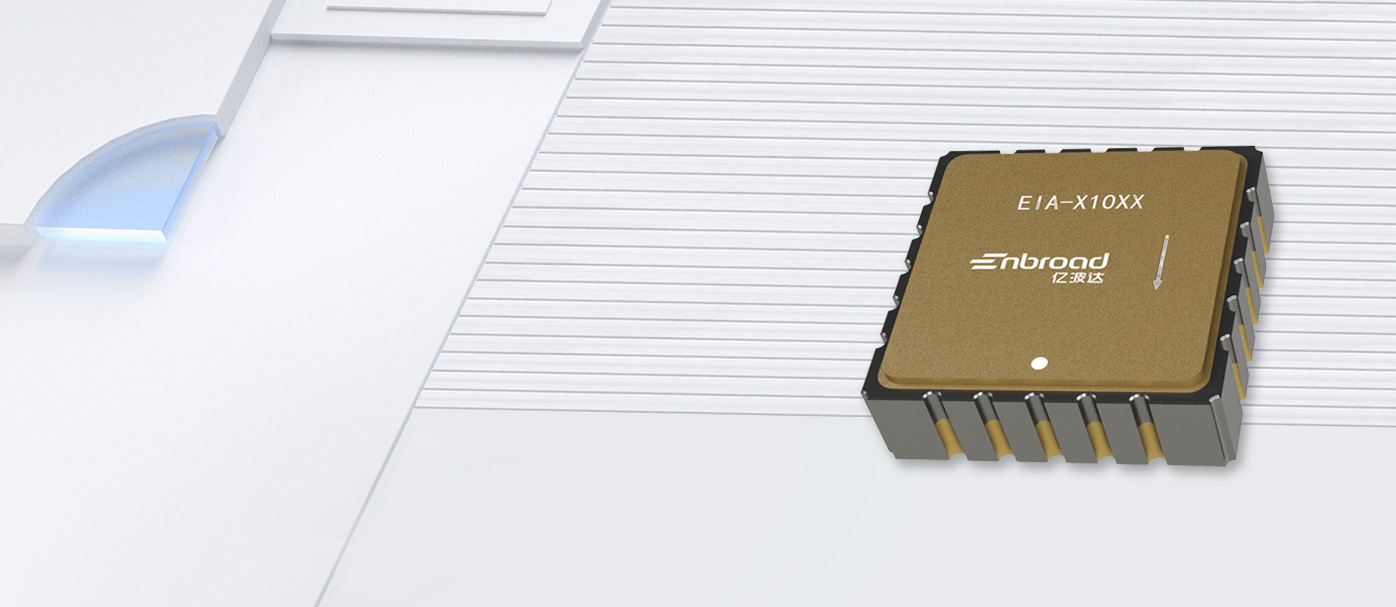

Uniaxial Accelerometer

EIA-X1000

The EIA-X1000 series is an X-axis MEMS accelerometer with low noise, low 0g bias, and optional measurement range. Supports ranges of ± 2 g, ± 10 g, and ± 30 g, with a 0 g temperature bias as low as 0.2 mg/℃ and an ultra-low noise density of 1.2 ug/√ Hz. Suitable for applications such as inertial navigation, vibration sensing, state monitoring, attitude measurement, platform stability control, etc.
performance parameter Advantages and Characteristics application area

performance parameter


ModelRange（g）Nonlinear（%）Bandwidth（Hz）Noise（μg/√Hz）Zero Bias Temperature Coefficient（μg/℃）Zero Bias Stability（μg）
EIA-X1002±2±0.2100012000.260
EIA-X1010±10±0.220025000.260
EIA-X1030±30±0.220030000.260




Advantages and Characteristics

  • Output: Analog differential output/SPI digital output
    Output: Analog differential output/SPI digital output Output: Analog differential output/SPI digital output
  • Built in temperature sensor
    Built in temperature sensor Built in temperature sensor
  • Support on-chip third-order temperature compensation
    Support on-chip third-order temperature compensation Support on-chip third-order temperature compensation
  • Closed loop structure capacitive MEMS digital accelerometer
    Closed loop structure capacitive MEMS digital accelerometer Closed loop structure capacitive MEMS digital accelerometer

application area

×
